SDR0805-391KL

SDR0805-391KL

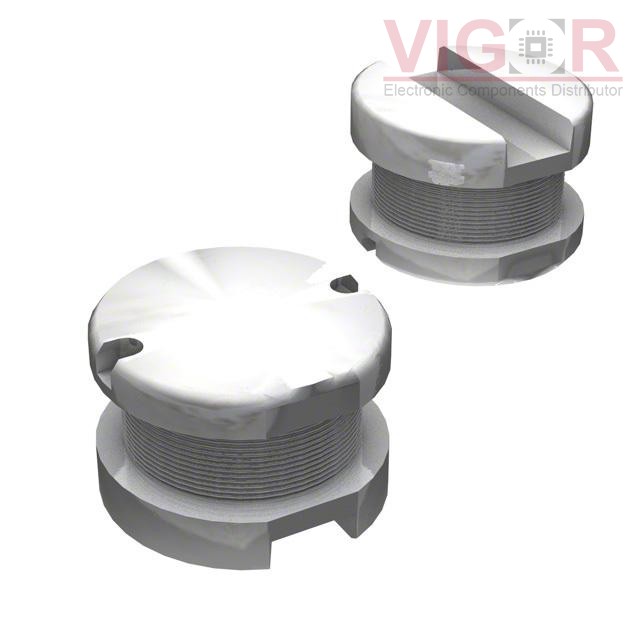

Image is for reference,
please contact us to get the real picture

Part No :

SDR0805-391KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 390UH 360MA 1.77OHM SM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
SDR0805-391KL PDF
Availability
336 pieces
Unit Price
$0.70000

Current price of SDR0805-391KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0805-391KL Specifications
Type Description
Series:SDR0805
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:390 µH
Tolerance:±10%
Current Rating (Amps):360 mA
Current - Saturation (Isat):550mA
Shielding:Unshielded
DC Resistance (DCR):1.77Ohm Max
Q @ Freq:12 @ 796kHz
Frequency - Self Resonant:4MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max):0.209" (5.30mm)
