MBMK2520HR68N

MBMK2520HR68N

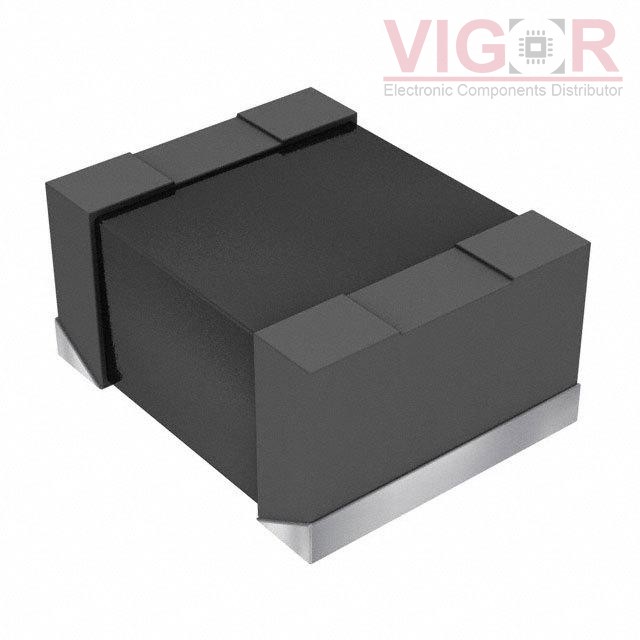

Image is for reference,
please contact us to get the real picture

Part No :

MBMK2520HR68N

Manufacturer
TAIYO YUDEN
Description
FIXED IND 680NH 2.15A 58 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
MBMK2520HR68N PDF
Availability
1570 pieces
Unit Price
$0.24000

Current price of MBMK2520HR68N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBMK2520HR68N Specifications
Type Description
Series:MCOIL™, MB, H Type
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Metal
Inductance:680 nH
Tolerance:±30%
Current Rating (Amps):2.15 A
Current - Saturation (Isat):3.15A
Shielding:Shielded
DC Resistance (DCR):58mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1008 (2520 Metric)
Supplier Device Package:1008 (2520 Metric)
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.047" (1.20mm)
