SRP4020FA-R82M

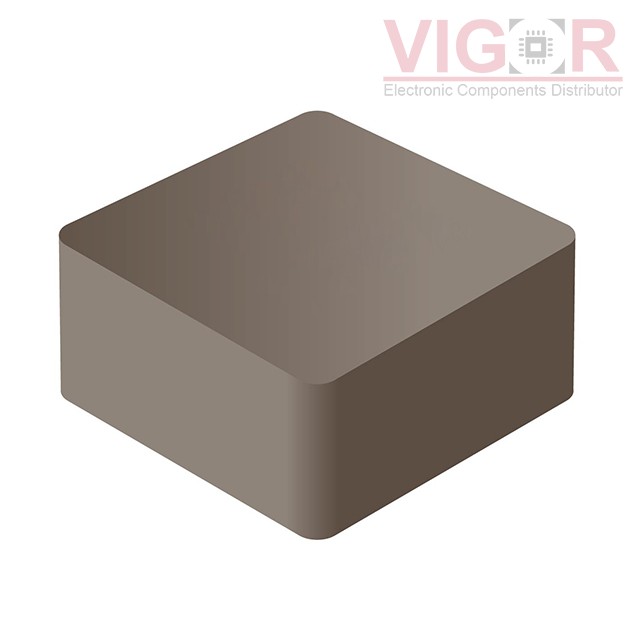

Image is for reference,
please contact us to get the real picture

Part No :: SRP4020FA-R82M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 820NH 11.5A 9.5MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: SRP4020FA-R82M PDF

Availability: 0 pieces

Unit Price: ~~$1.50000~~

Current price of SRP4020FA-R82M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP4020FA-R82M Specifications

Type	Description
Series:	SRP4020FA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	820 nH
Tolerance:	±20%
Current Rating (Amps):	11.5 A
Current - Saturation (Isat):	6.5A
Shielding:	Shielded
DC Resistance (DCR):	9.5mOhm Max
Q @ Freq:	20 @ 100kHz
Frequency - Self Resonant:	62MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max):	0.083" (2.10mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
