KLZ1608MHR220WTD25

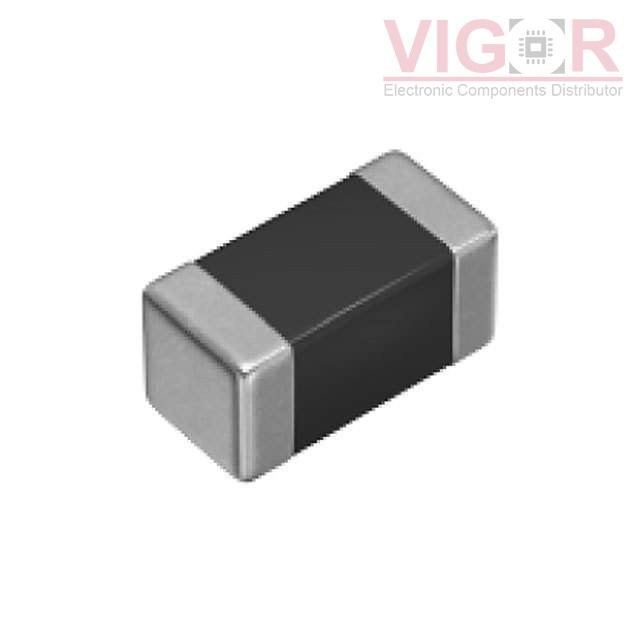

Image is for reference,
please contact us to get the real picture

Part No :: KLZ1608MHR220WTD25

Manufacturer: TDK Corporation

Description: FIXED IND 22UH 150MA 3.12 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 16 - Jul 20 2025

DataSheet: KLZ1608MHR220WTD25 PDF

Availability: 6217 pieces

Unit Price: ~~$0.25000~~

Current price of KLZ1608MHR220WTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

KLZ1608MHR220WTD25 Specifications

Type	Description
Series:	KLZ-HR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	150 mA
Current - Saturation (Isat):	55mA
Shielding:	Shielded
DC Resistance (DCR):	3.12Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	2 MHz
Features:	Soft Termination
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)
