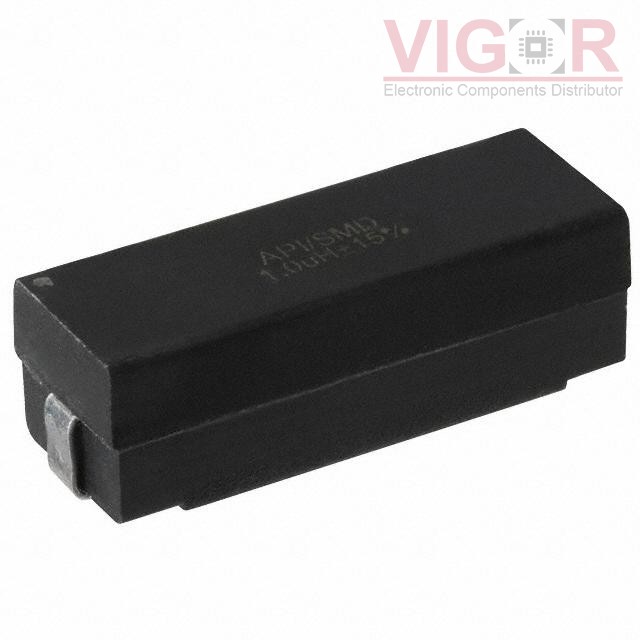

8532R-34H

8532R-34H

Image is for reference,
please contact us to get the real picture

Part No :

8532R-34H

Manufacturer
API Delevan
Description
FIXED IND 560UH 560MA 1.14 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
8532R-34H PDF
Availability
0 pieces
Unit Price
$8.81558

Current price of 8532R-34H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

8532R-34H Specifications
Type Description
Series:8532R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±15%
Current Rating (Amps):560 mA
Current - Saturation (Isat):270mA
Shielding:Unshielded
DC Resistance (DCR):1.14Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD
Supplier Device Package:-
Size / Dimension:0.880" L x 0.330" W (22.35mm x 8.38mm)
Height - Seated (Max):0.286" (7.26mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

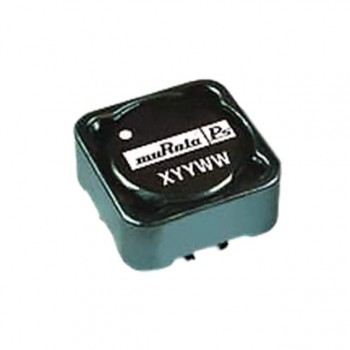

HOT 48220C

48220C

FIXED IND 22UH 2.6A 119 MOHM

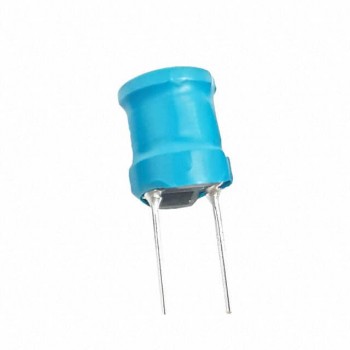

HOT SBC7-100-532

SBC7-100-532

FIXED IND 10UH 5.3A 20 MOHM TH

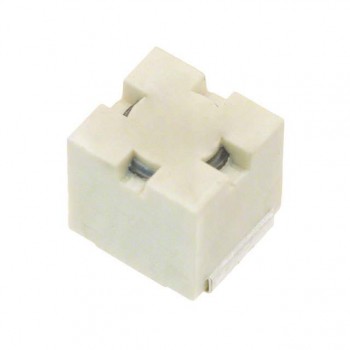

HOT B82442A1685K000
