7843330056

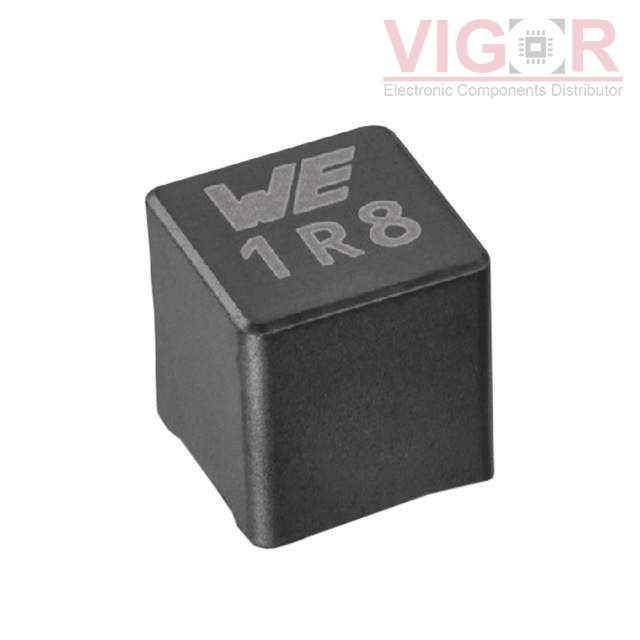

Image is for reference,
please contact us to get the real picture

Part No :: 7843330056

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 560NH 23.5A 2.05 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: 7843330056 PDF

Availability: 0 pieces

Unit Price: ~~$2.16700~~

Current price of 7843330056 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7843330056 Specifications

Type	Description
Series:	WE-CHSA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±20%
Current Rating (Amps):	23.5 A
Current - Saturation (Isat):	43.4A
Shielding:	Shielded
DC Resistance (DCR):	2.05mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	100MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1011
Size / Dimension:	0.417" L x 0.417" W (10.60mm x 10.60mm)
Height - Seated (Max):	0.445" (11.30mm)
