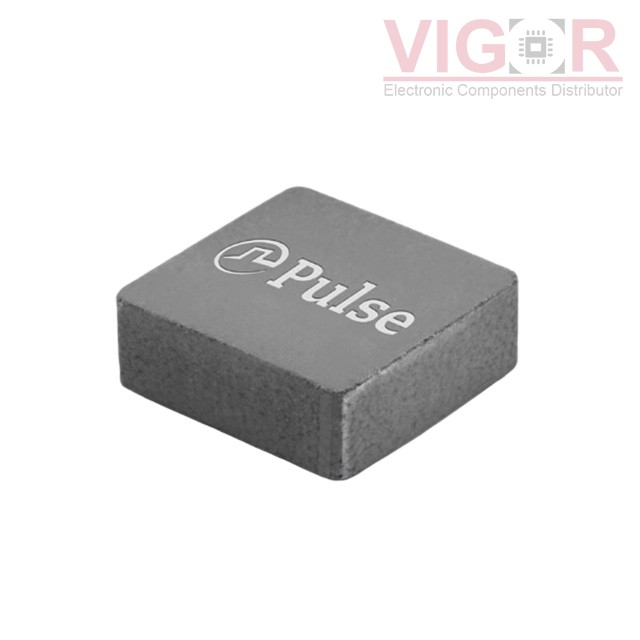

PM2203.561NLT

PM2203.561NLT

Image is for reference,
please contact us to get the real picture

Part No :

PM2203.561NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 560NH 17.7A 4.52 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
PM2203.561NLT PDF
Availability
0 pieces
Unit Price
$1.09120

Current price of PM2203.561NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM2203.561NLT Specifications
Type Description
Series:PM2203.XXXNLT
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):17.7 A
Current - Saturation (Isat):22.2A
Shielding:Unshielded
DC Resistance (DCR):4.52mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:SMD
Size / Dimension:0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max):0.122" (3.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MHQ1005PR10GTD25

MHQ1005PR10GTD25

FIXED IND 100NH 150MA 2.5 OHM
HOT 7447713820

7447713820

FIXED IND 82UH 950MA 419 MOHM

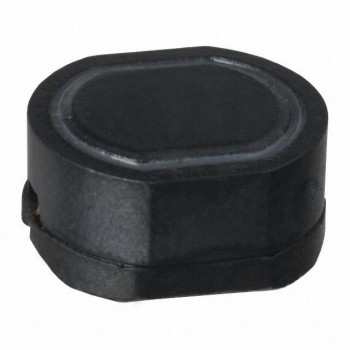

HOT PM105SB-221K-RC
