1812R-561F

1812R-561F

Image is for reference,
please contact us to get the real picture

Part No :

1812R-561F

Manufacturer
API Delevan
Description
FIXED IND 560NH 409MA 1.2 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
1812R-561F PDF
Availability
0 pieces
Unit Price
$2.80225

Current price of 1812R-561F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1812R-561F Specifications
Type Description
Series:1812R
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:560 nH
Tolerance:±1%
Current Rating (Amps):409 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.2Ohm Max
Q @ Freq:30 @ 25MHz
Frequency - Self Resonant:170MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD
Supplier Device Package:-
Size / Dimension:0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max):0.190" (4.83mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82144B1686J000

B82144B1686J000

FIXED IND 68MH 25MA 290 OHM TH
HOT SP1210-332J

SP1210-332J

FIXED IND 3.3UH 692MA 440 MOHM

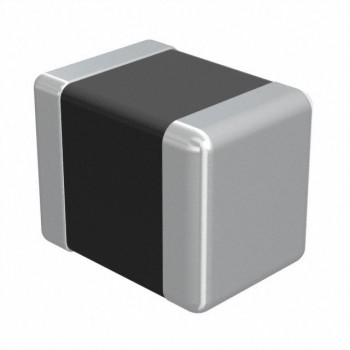

HOT LBC2518T331M
