SD14-220-R

SD14-220-R

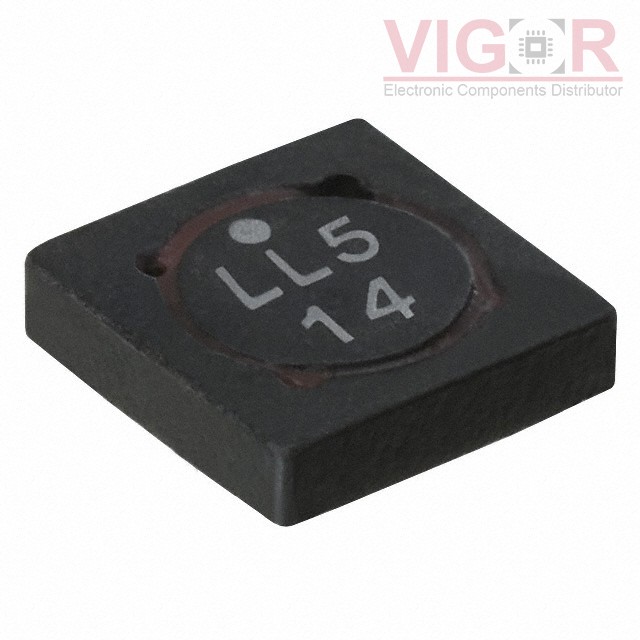

Image is for reference,
please contact us to get the real picture

Part No :

SD14-220-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 22UH 806MA 385.3 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
SD14-220-R PDF
Availability
0 pieces
Unit Price
$1.02450

Current price of SD14-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SD14-220-R Specifications
Type Description
Series:SD
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):806 mA
Current - Saturation (Isat):793mA
Shielding:Shielded
DC Resistance (DCR):385.3mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max):0.057" (1.45mm)
