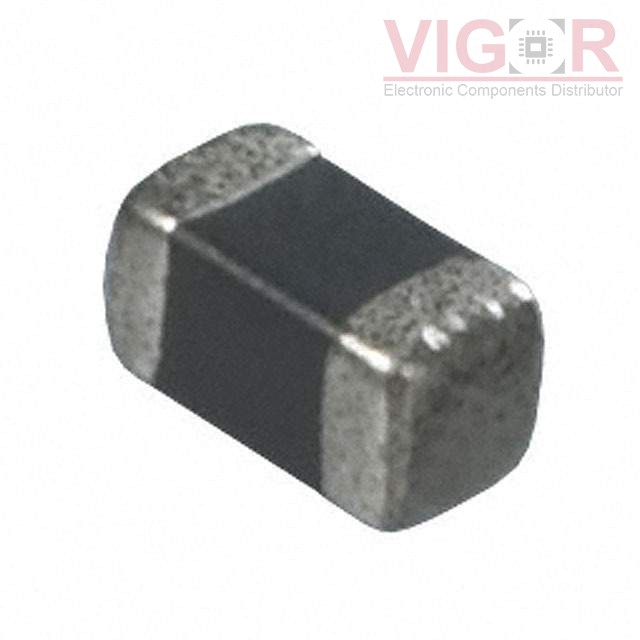

LQB18NNR56K10D

LQB18NNR56K10D

Image is for reference,
please contact us to get the real picture

Part No :

LQB18NNR56K10D

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 300MA 850 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
LQB18NNR56K10D PDF
Availability
0 pieces
Unit Price
$0.05022

Current price of LQB18NNR56K10D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQB18NNR56K10D Specifications
Type Description
Series:LQB18
Package:Tape & Reel (TR)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±10%
Current Rating (Amps):300 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):850mOhm Max
Q @ Freq:25 @ 25MHz
Frequency - Self Resonant:80MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.037" (0.95mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT L1210R1R0MDWIT

L1210R1R0MDWIT

FIXED IND 1UH 2A 55 MOHM SMD
HOT CBC3225T470KRV

CBC3225T470KRV

FIXED IND 47UH 320MA 871 MOHM

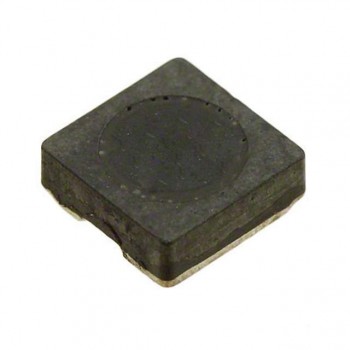

HOT 744042006
