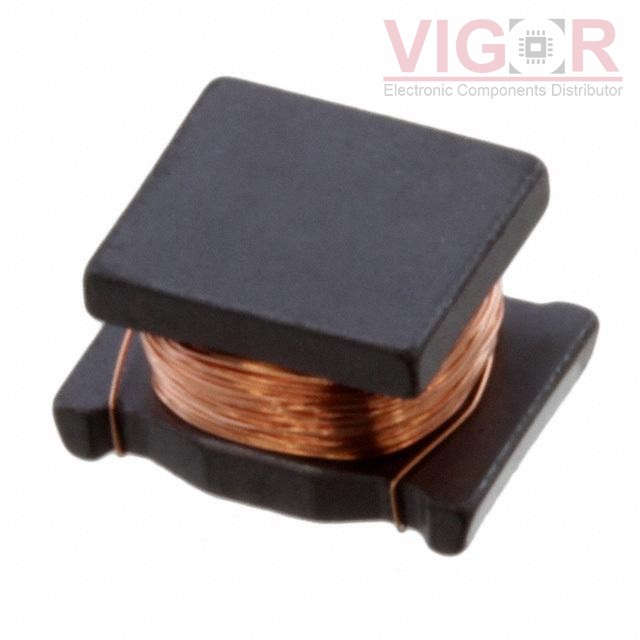

LQH43NN120J03L

Image is for reference,
please contact us to get the real picture

Part No :: LQH43NN120J03L

Manufacturer: TOKO / Murata

Description: FIXED IND 12UH 380MA 620 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 05 - Aug 09 2025

DataSheet: LQH43NN120J03L PDF

Availability: 0 pieces

Unit Price: ~~$0.30072~~

Current price of LQH43NN120J03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQH43NN120J03L Specifications

Type	Description
Series:	LQH43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	12 µH
Tolerance:	±5%
Current Rating (Amps):	380 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	620mOhm Max
Q @ Freq:	35 @ 1MHz
Frequency - Self Resonant:	21MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812 (4532 Metric)
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)
