SDR0906-561KL

SDR0906-561KL

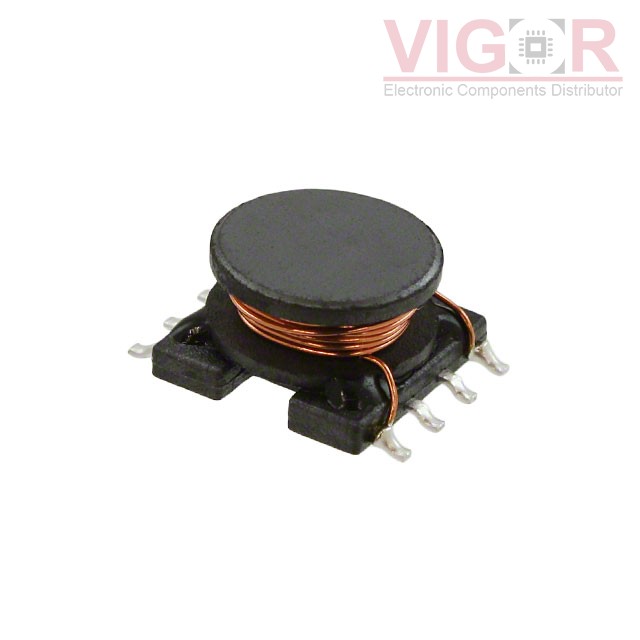

Image is for reference,
please contact us to get the real picture

Part No :

SDR0906-561KL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 560UH 320MA 2.1OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
SDR0906-561KL PDF
Availability
0 pieces
Unit Price
$0.40480

Current price of SDR0906-561KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0906-561KL Specifications
Type Description
Series:SDR0906
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 µH
Tolerance:±10%
Current Rating (Amps):320 mA
Current - Saturation (Isat):530mA
Shielding:Unshielded
DC Resistance (DCR):2.1Ohm Max
Q @ Freq:15 @ 796kHz
Frequency - Self Resonant:4MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.492" L x 0.413" W (12.50mm x 10.50mm)
Height - Seated (Max):0.248" (6.30mm)
