RLF10160T-101M1R1-D

RLF10160T-101M1R1-D

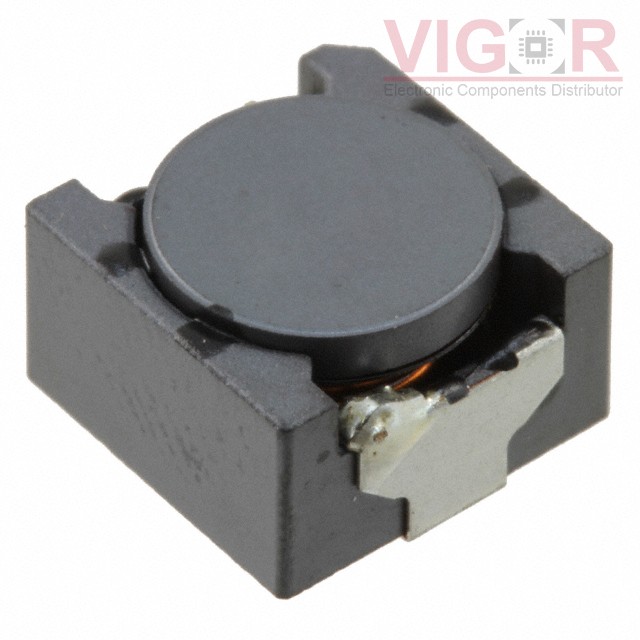

Image is for reference,
please contact us to get the real picture

Part No :

RLF10160T-101M1R1-D

Manufacturer
TDK Corporation
Description
FIXED IND 100UH 1.1A 234 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
RLF10160T-101M1R1-D PDF
Availability
732 pieces
Unit Price
$3.05000

Current price of RLF10160T-101M1R1-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLF10160T-101M1R1-D Specifications
Type Description
Series:RLF-D
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Not For New Designs
Type:Wirewound
Material - Core:Ferrite
Inductance:100 µH
Tolerance:±20%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):1.7A
Shielding:Shielded
DC Resistance (DCR):234mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max):0.252" (6.40mm)
