SDR0503-560KL

Image is for reference,
please contact us to get the real picture

Part No :: SDR0503-560KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 56UH 500MA 710MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 26 - Aug 30 2025

DataSheet: SDR0503-560KL PDF

Availability: 0 pieces

Unit Price: ~~$0.26180~~

Current price of SDR0503-560KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0503-560KL Specifications

Type	Description
Series:	SDR0503
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	700mA
Shielding:	Unshielded
DC Resistance (DCR):	710mOhm Max
Q @ Freq:	20 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.197" L x 0.189" W (5.00mm x 4.80mm)
Height - Seated (Max):	0.130" (3.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

1641R-103K BK

FIXED IND 10UH 228MA 1.62 OHM TH

HOT

LBM2016TR47J

FIXED IND 470NH 430MA 260 MOHM

HOT

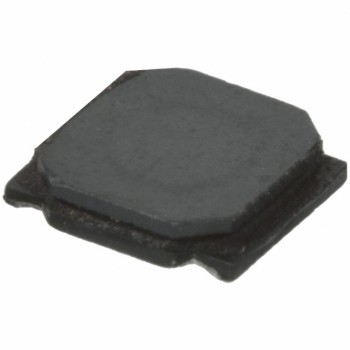

NR4010T2R2N
