CW160808-56NJ

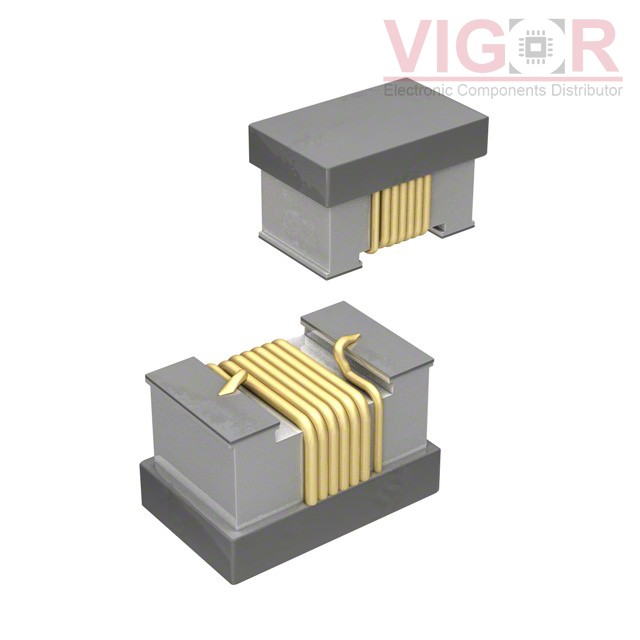

Image is for reference,
please contact us to get the real picture

Part No :: CW160808-56NJ

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 56NH 600MA 310MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: CW160808-56NJ PDF

Availability: 0 pieces

Unit Price: ~~$0.12716~~

Current price of CW160808-56NJ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW160808-56NJ Specifications

Type	Description
Series:	CW160808
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Alumina
Inductance:	56 nH
Tolerance:	±5%
Current Rating (Amps):	600 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	310mOhm
Q @ Freq:	35 @ 250MHz
Frequency - Self Resonant:	1.9GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	200 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.065" L x 0.041" W (1.65mm x 1.05mm)
Height - Seated (Max):	0.047" (1.20mm)
