ELL-4GG150M

ELL-4GG150M

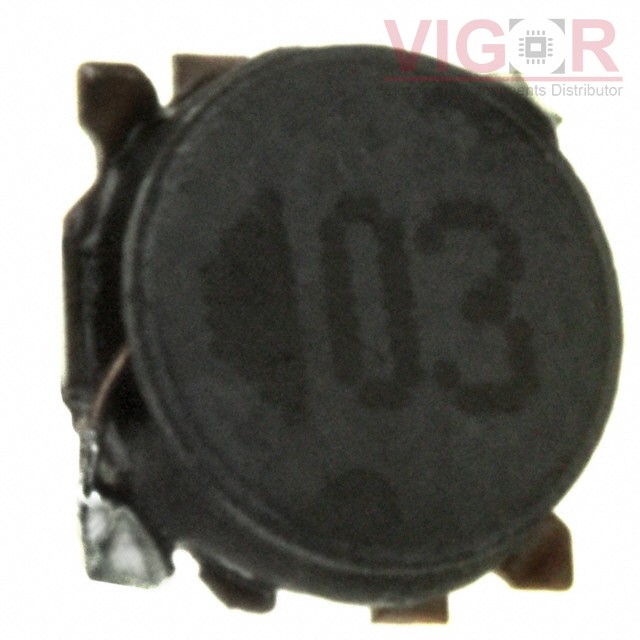

Image is for reference,
please contact us to get the real picture

Part No :

ELL-4GG150M

Manufacturer
Panasonic
Description
FIXED IND 15UH 580MA 500 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
ELL-4GG150M PDF
Availability
298 pieces
Unit Price
$0.55000

Current price of ELL-4GG150M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ELL-4GG150M Specifications
Type Description
Series:G
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Wirewound
Material - Core:-
Inductance:15 µH
Tolerance:±20%
Current Rating (Amps):580 mA
Current - Saturation (Isat):700mA
Shielding:Shielded
DC Resistance (DCR):500mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max):0.055" (1.40mm)
