PM105SB-180M-RC

PM105SB-180M-RC

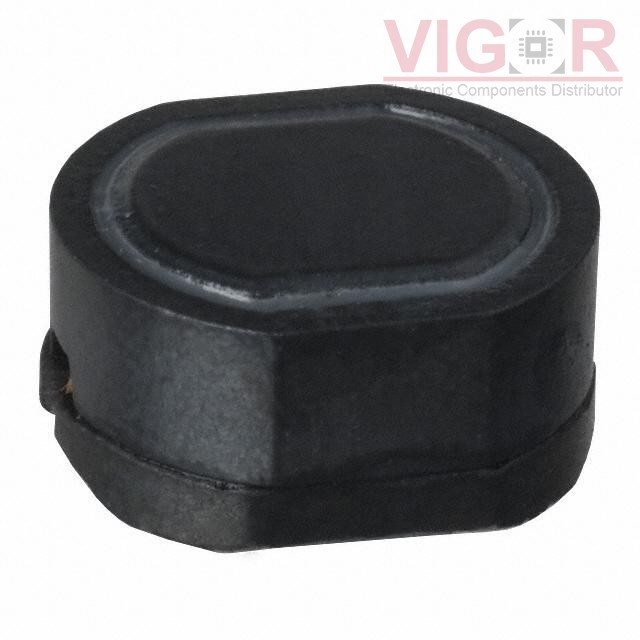

Image is for reference,
please contact us to get the real picture

Part No :

PM105SB-180M-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 18UH 1.6A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
PM105SB-180M-RC PDF
Availability
0 pieces
Unit Price
$0.47040

Current price of PM105SB-180M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105SB-180M-RC Specifications
Type Description
Series:PM105SB
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:18 µH
Tolerance:±20%
Current Rating (Amps):1.6 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):80mOhm Max
Q @ Freq:39 @ 2.52MHz
Frequency - Self Resonant:21MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.390" L x 0.390" W (9.90mm x 9.90mm)
Height - Seated (Max):0.189" (4.80mm)
