PM0603-22NJ-RC

PM0603-22NJ-RC

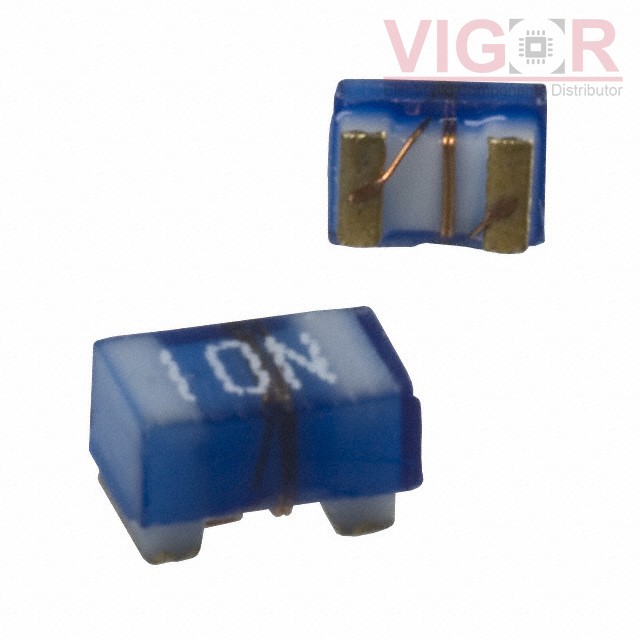

Image is for reference,
please contact us to get the real picture

Part No :

PM0603-22NJ-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22NH 700MA 190MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
PM0603-22NJ-RC PDF
Availability
0 pieces
Unit Price
$0.13260

Current price of PM0603-22NJ-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM0603-22NJ-RC Specifications
Type Description
Series:PM0603
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Alumina
Inductance:22 nH
Tolerance:±5%
Current Rating (Amps):700 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):190mOhm
Q @ Freq:35 @ 250MHz
Frequency - Self Resonant:3GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.065" L x 0.041" W (1.65mm x 1.05mm)
Height - Seated (Max):0.047" (1.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PA4342.152ANLT

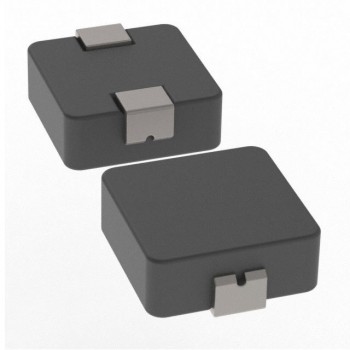

PA4342.152ANLT

FIXED IND 1.5UH 16A 4.2 MOHM SMD
HOT B82432C1393J000

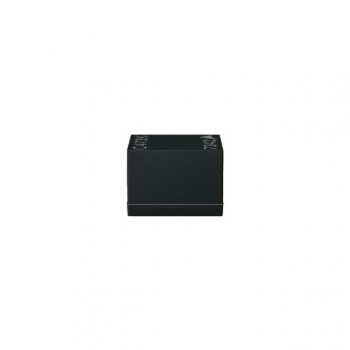

B82432C1393J000

FIXED IND 39UH 220MA 2.05 OHM
HOT PM4546.221NLT

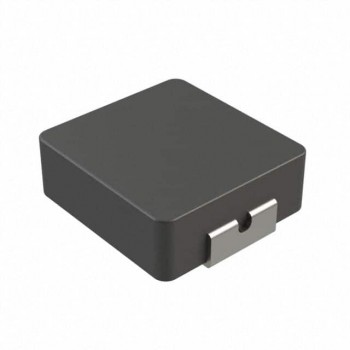

PM4546.221NLT
