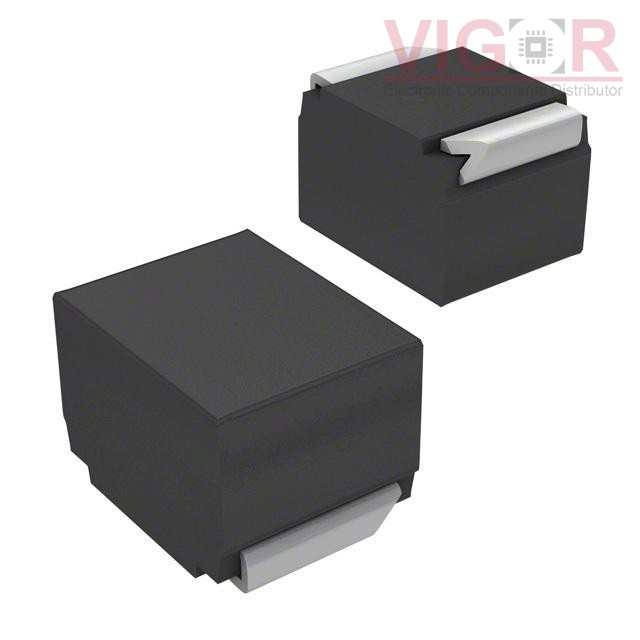

B82422A3681K100

B82422A3681K100

Image is for reference,
please contact us to get the real picture

Part No :

B82422A3681K100

Manufacturer
TDK EPCOS
Description
FIXED IND 680NH 145MA 2.4 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
B82422A3681K100 PDF
Availability
2894 pieces
Unit Price
$0.60000

Current price of B82422A3681K100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422A3681K100 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ceramic
Inductance:680 nH
Tolerance:±10%
Current Rating (Amps):145 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.4Ohm Max
Q @ Freq:22 @ 30MHz
Frequency - Self Resonant:280MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.083" (2.10mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT S1812-151K

S1812-151K

FIXED IND 150NH 1.347A 110 MOHM
HOT WL05JT5N6

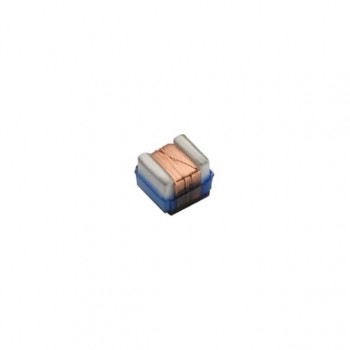

WL05JT5N6
