1285AS-H-R56M=P2

1285AS-H-R56M=P2

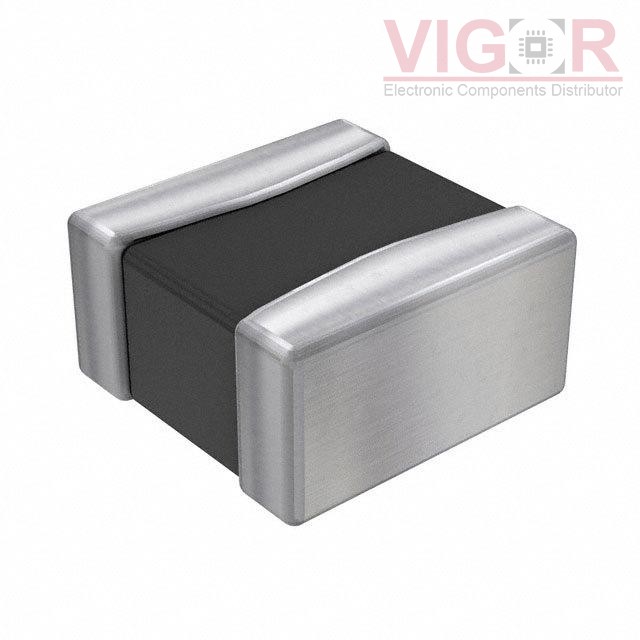

Image is for reference,
please contact us to get the real picture

Part No :

1285AS-H-R56M=P2

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 2.8A 59 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
1285AS-H-R56M=P2 PDF
Availability
0 pieces
Unit Price
$0.40000

Current price of 1285AS-H-R56M=P2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1285AS-H-R56M=P2 Specifications
Type Description
Series:DFE201610C
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):2.8 A
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):59mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.039" (1.00mm)
