5022-113J

5022-113J

Image is for reference,
please contact us to get the real picture

Part No :

5022-113J

Manufacturer
API Delevan
Description
FIXED IND 11UH 565MA 1.05 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
5022-113J PDF
Availability
0 pieces
Unit Price
$1.96230

Current price of 5022-113J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5022-113J Specifications
Type Description
Series:5022
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Iron
Inductance:11 µH
Tolerance:±5%
Current Rating (Amps):565 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):1.05Ohm Max
Q @ Freq:60 @ 2.5MHz
Frequency - Self Resonant:44MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max):0.230" (5.80mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT LQP02HQ15NH02L

LQP02HQ15NH02L

FIXED IND 15NH 170MA 1.53 OHM

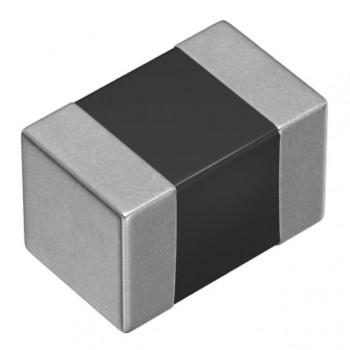

HOT MLF2012DR22KT000

MLF2012DR22KT000

FIXED IND 220NH 250MA 300 MOHM

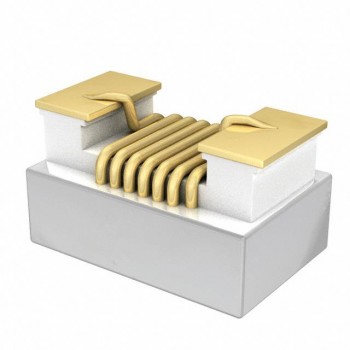

HOT L-07W36NJV4T
