SDR1305-2R5Y

SDR1305-2R5Y

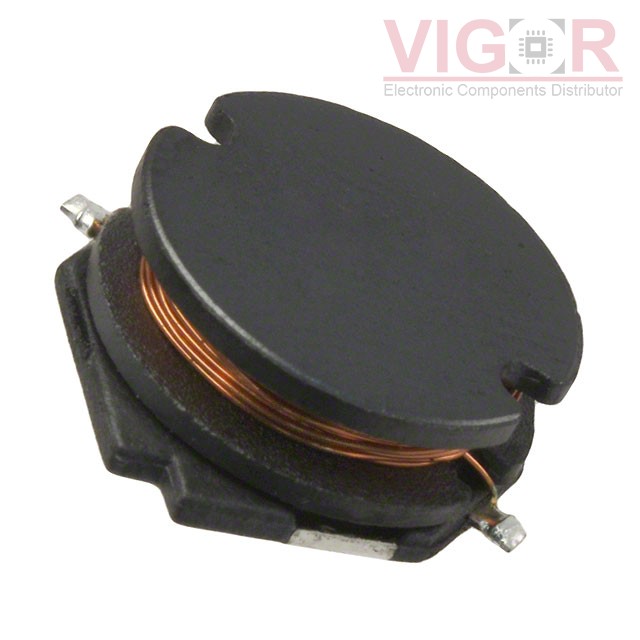

Image is for reference,
please contact us to get the real picture

Part No :

SDR1305-2R5Y

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.5UH 7.2A 9.8MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
SDR1305-2R5Y PDF
Availability
0 pieces
Unit Price
$0.40480

Current price of SDR1305-2R5Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR1305-2R5Y Specifications
Type Description
Series:SDR1305
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.5 µH
Tolerance:±25%
Current Rating (Amps):7.2 A
Current - Saturation (Isat):8A
Shielding:Unshielded
DC Resistance (DCR):9.8mOhm Max
Q @ Freq:19 @ 7.96MHz
Frequency - Self Resonant:61MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max):0.201" (5.10mm)
