SRP2313AA-2R2M

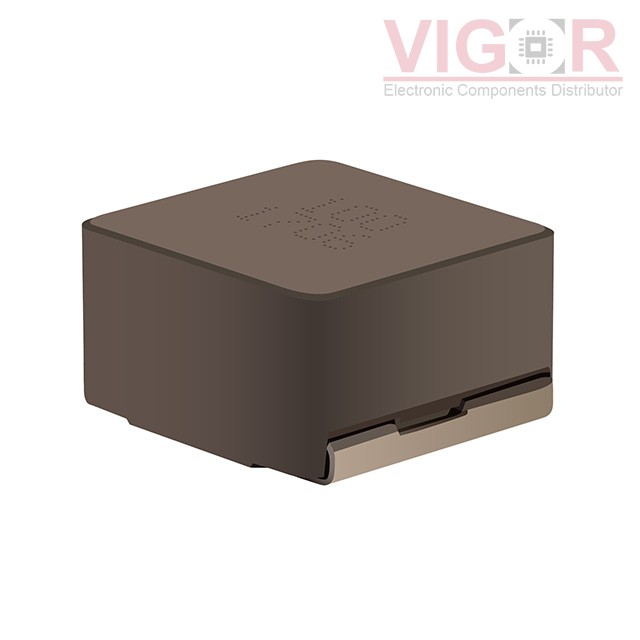

Image is for reference,
please contact us to get the real picture

Part No :: SRP2313AA-2R2M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 2.2UH 52A 1.25MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: SRP2313AA-2R2M PDF

Availability: 186 pieces

Unit Price: ~~$7.71000~~

Current price of SRP2313AA-2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRP2313AA-2R2M Specifications

Type	Description
Series:	SRP2313AA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	52 A
Current - Saturation (Isat):	43A
Shielding:	Shielded
DC Resistance (DCR):	1.25mOhm Max
Q @ Freq:	60 @ 100kHz
Frequency - Self Resonant:	19MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max):	0.512" (13.00mm)
