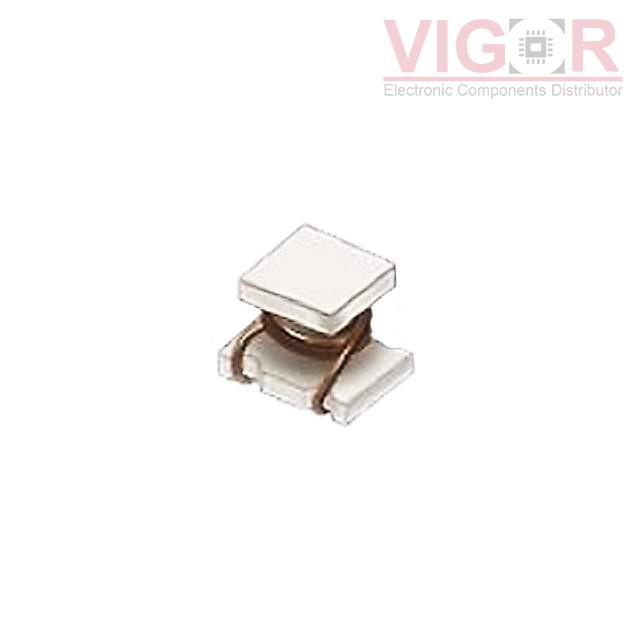

LQW2BHNR12G03L

Image is for reference,
please contact us to get the real picture

Part No :: LQW2BHNR12G03L

Manufacturer: TOKO / Murata

Description: FIXED IND 120NH 320MA 400 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: LQW2BHNR12G03L PDF

Availability: 665 pieces

Unit Price: ~~$0.48000~~

Current price of LQW2BHNR12G03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQW2BHNR12G03L Specifications

Type	Description
Series:	LQW2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	120 nH
Tolerance:	±2%
Current Rating (Amps):	320 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	400mOhm Max
Q @ Freq:	40 @ 150MHz
Frequency - Self Resonant:	750MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.059" W (2.00mm x 1.50mm)
Height - Seated (Max):	0.070" (1.78mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LHL10TB272J

FIXED IND 2.7MH 240MA 4.3 OHM TH

HOT

LQP02TN27NJ02D

FIXED IND 27NH 120MA 5.5 OHM SMD

HOT

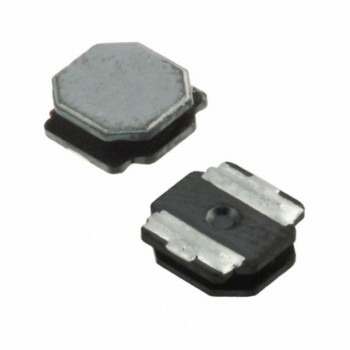

NRS5040T6R8MMGJV
