TYS80402R2N-10

TYS80402R2N-10

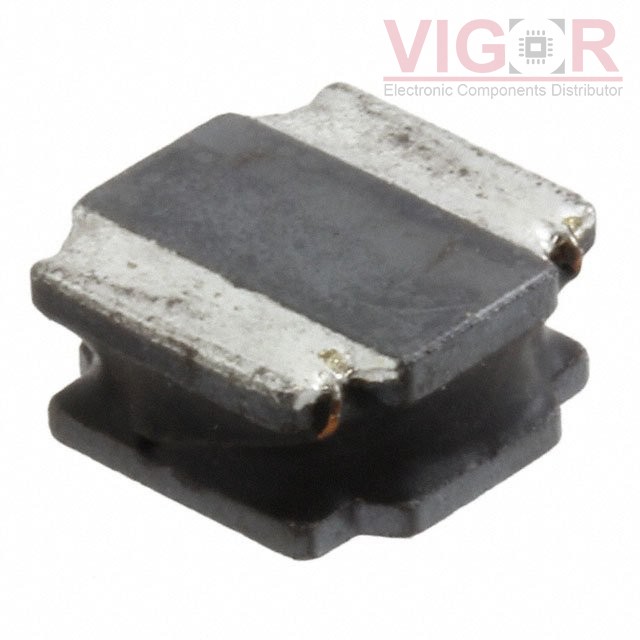

Image is for reference,
please contact us to get the real picture

Part No :

TYS80402R2N-10

Manufacturer
Laird - Performance Materials
Description
FIXED IND 2.2UH 5.15A 12 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
TYS80402R2N-10 PDF
Availability
0 pieces
Unit Price
$0.22786

Current price of TYS80402R2N-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TYS80402R2N-10 Specifications
Type Description
Series:TYS8040
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:-
Inductance:2.2 µH
Tolerance:±30%
Current Rating (Amps):5.15 A
Current - Saturation (Isat):7.1A
Shielding:Shielded
DC Resistance (DCR):12mOhm Max
Q @ Freq:-
Frequency - Self Resonant:41MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):0.165" (4.20mm)
