L-15W56NGV4E

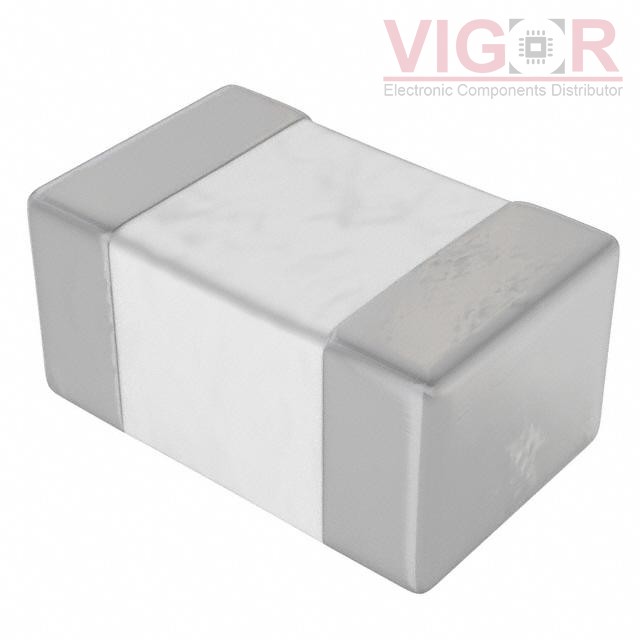

Image is for reference,
please contact us to get the real picture

Part No :: L-15W56NGV4E

Manufacturer: Johanson Technology

Description: FIXED IND 56NH 500MA 250 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: L-15W56NGV4E PDF

Availability: 0 pieces

Unit Price: ~~$0.08640~~

Current price of L-15W56NGV4E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L-15W56NGV4E Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	56 nH
Tolerance:	±2%
Current Rating (Amps):	500 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	250mOhm Max
Q @ Freq:	60 @ 500MHz
Frequency - Self Resonant:	1.6GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	200 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.055" (1.40mm)
