CPL2508T220M

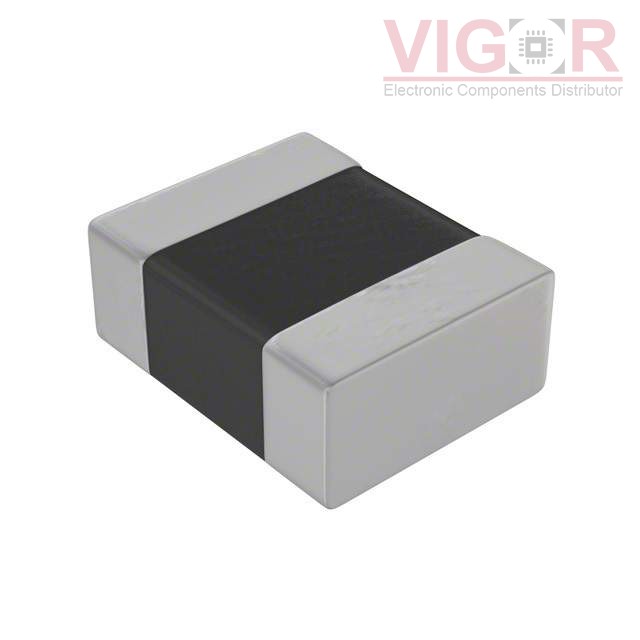

Image is for reference,
please contact us to get the real picture

Part No :: CPL2508T220M

Manufacturer: TDK Corporation

Description: FIXED IND 22UH 180MA 3.12 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: CPL2508T220M PDF

Availability: 338 pieces

Unit Price: ~~$0.47000~~

Current price of CPL2508T220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CPL2508T220M Specifications

Type	Description
Series:	CPL
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	180 mA
Current - Saturation (Isat):	180mA
Shielding:	Shielded
DC Resistance (DCR):	3.12Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	-
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.098" L x 0.059" W (2.50mm x 1.50mm)
Height - Seated (Max):	0.031" (0.80mm)
