SDE0805A-2R5M

SDE0805A-2R5M

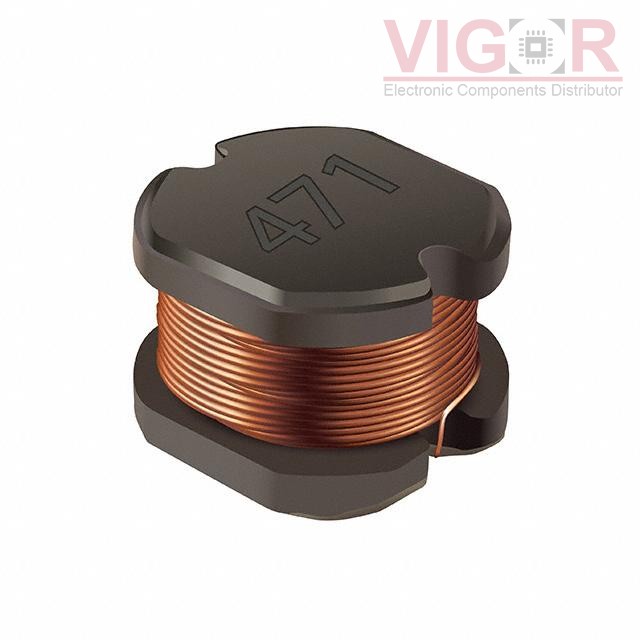

Image is for reference,
please contact us to get the real picture

Part No :

SDE0805A-2R5M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 2.5UH 5A 27 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
SDE0805A-2R5M PDF
Availability
43 pieces
Unit Price
$0.77000

Current price of SDE0805A-2R5M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDE0805A-2R5M Specifications
Type Description
Series:SDE0805A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.5 µH
Tolerance:±20%
Current Rating (Amps):5 A
Current - Saturation (Isat):5A
Shielding:Unshielded
DC Resistance (DCR):27mOhm Max
Q @ Freq:-
Frequency - Self Resonant:71.2MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):0.217" (5.50mm)
