IMC1812ES680J

IMC1812ES680J

Image is for reference,
please contact us to get the real picture

Part No :

IMC1812ES680J

Manufacturer
Vishay / Dale
Description
FIXED IND 68UH 130MA 6 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IMC1812ES680J PDF
Availability
0 pieces
Unit Price
$0.58240

Current price of IMC1812ES680J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IMC1812ES680J Specifications
Type Description
Series:IMC-1812
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Iron Powder
Inductance:68 µH
Tolerance:±5%
Current Rating (Amps):130 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):6Ohm Max
Q @ Freq:50 @ 2.52MHz
Frequency - Self Resonant:9MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:2.52 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:1812 (4532 Metric)
Supplier Device Package:1812
Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):0.134" (3.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

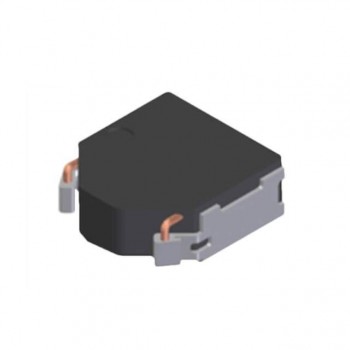

HOT FDSD0420D-R68M=P3

FDSD0420D-R68M=P3

FIXED IND 680NH 6.5A 22 MOHM

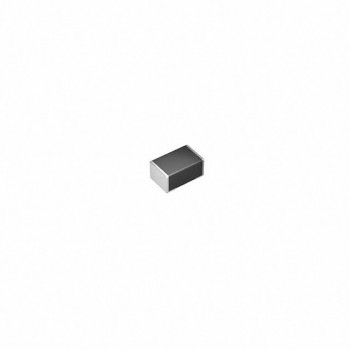

HOT MCKK2012TR24M

MCKK2012TR24M

FIXED IND 240NH 6.2A 25 MOHM SMD

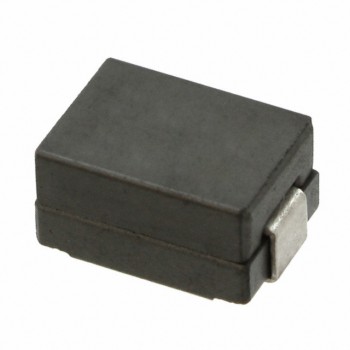

HOT FP4-120-R
