0805CS-561EJFS

0805CS-561EJFS

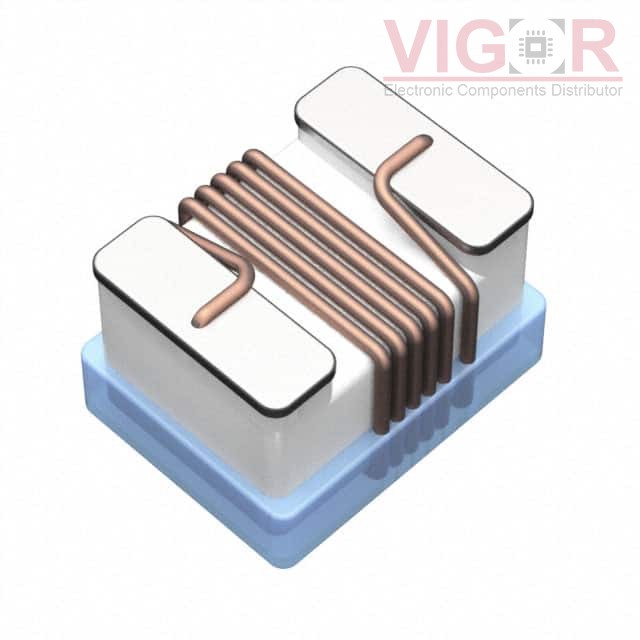

Image is for reference,
please contact us to get the real picture

Part No :

0805CS-561EJFS

Manufacturer
Delta Electronics
Description
FIXED IND 560NH 550MA 450 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
0805CS-561EJFS PDF
Availability
0 pieces
Unit Price
$0.32000

Current price of 0805CS-561EJFS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0805CS-561EJFS Specifications
Type Description
Series:0805CS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±5%
Current Rating (Amps):550 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):450mOhm
Q @ Freq:20 @ 25.2MHz
Frequency - Self Resonant:300MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric)
Supplier Device Package:0805
Size / Dimension:0.090" L x 0.067" W (2.29mm x 1.71mm)
Height - Seated (Max):0.057" (1.45mm)
