Current price of SDR7030-680K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | SDR7030 |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Wirewound |
Material - Core: | Ferrite |
Inductance: | 68 µH |
Tolerance: | ±10% |
Current Rating (Amps): | 580 mA |
Current - Saturation (Isat): | 640mA |
Shielding: | Unshielded |
DC Resistance (DCR): | 480mOhm Max |
Q @ Freq: | 12 @ 2.52MHz |
Frequency - Self Resonant: | 16MHz |
Ratings: | - |
Operating Temperature: | -40°C ~ 125°C |
Inductance Frequency - Test: | 100 kHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | Nonstandard |
Supplier Device Package: | - |
Size / Dimension: | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
Height - Seated (Max): | 0.130" (3.30mm) |

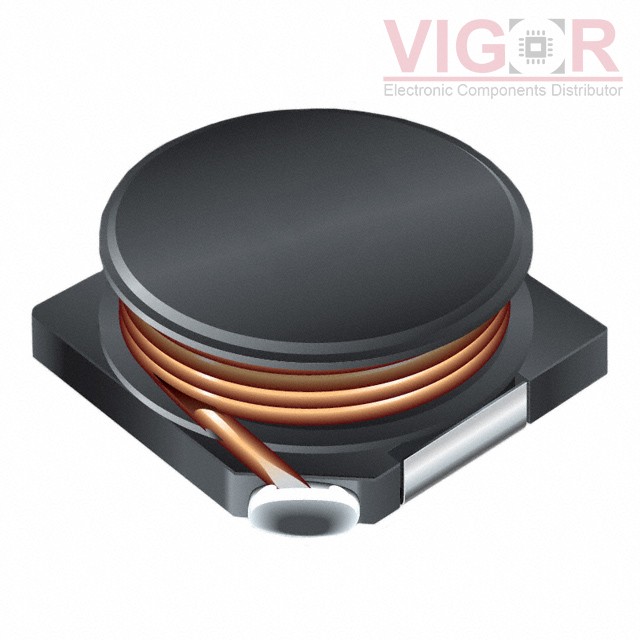

FIXED IND 68UH 580MA 480MOHM SMD
