784774156

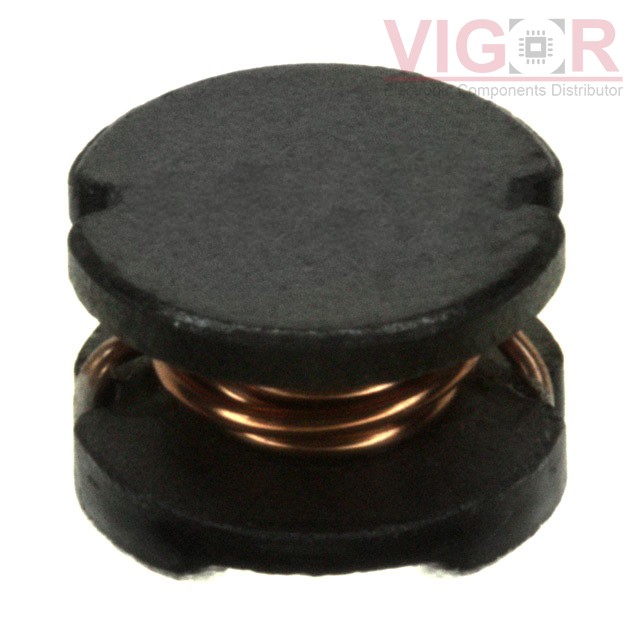

Image is for reference,
please contact us to get the real picture

Part No :: 784774156

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 56UH 770MA 420 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: 784774156 PDF

Availability: 0 pieces

Unit Price: ~~$1.12000~~

Current price of 784774156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

784774156 Specifications

Type	Description
Series:	WE-PD2A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±20%
Current Rating (Amps):	770 mA
Current - Saturation (Isat):	900mA
Shielding:	Unshielded
DC Resistance (DCR):	420mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	10MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	5848
Size / Dimension:	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max):	0.191" (4.85mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQP03HQ5N1J02D

FIXED IND 5.1NH 400MA 250 MOHM

HOT

LQG15WZ13NJ02D

FIXED IND 13NH 400MA 260 MOHM

HOT

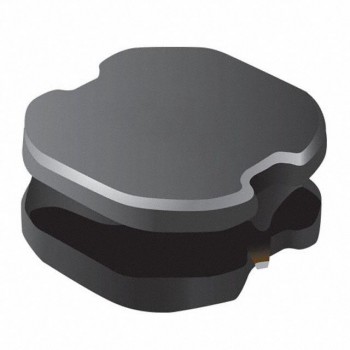

SRN8040-8R2Y
