Type | Description |
---|---|
Series: | MLG |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Multilayer |
Material - Core: | Ceramic, Non-Magnetic |
Inductance: | 3 nH |
Tolerance: | ±0.3nH |
Current Rating (Amps): | 300 mA |
Current - Saturation (Isat): | - |
Shielding: | Unshielded |
DC Resistance (DCR): | 300mOhm Max |
Q @ Freq: | 4 @ 100MHz |
Frequency - Self Resonant: | 6.2GHz |
Ratings: | - |
Operating Temperature: | -55°C ~ 125°C |
Inductance Frequency - Test: | 100 MHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | 0201 (0603 Metric) |
Supplier Device Package: | 0201 (0603 Metric) |
Size / Dimension: | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
Height - Seated (Max): | 0.013" (0.33mm) |

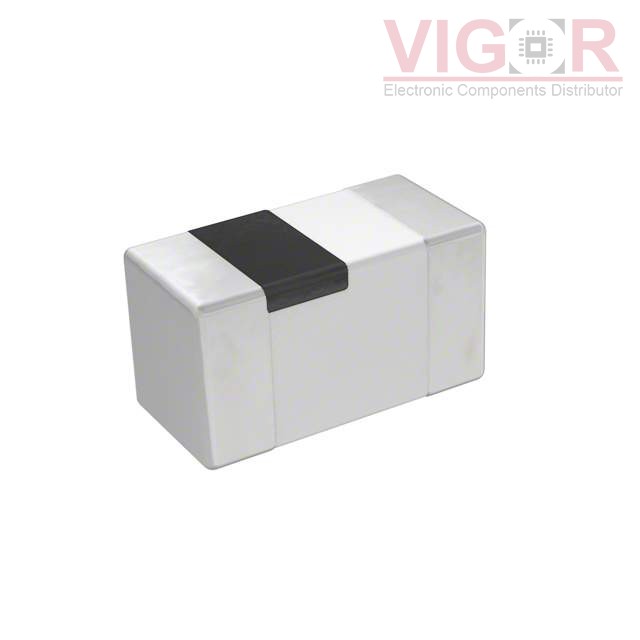

FIXED IND 3NH 300MA 300 MOHM SMD
