ER1641-223KR

ER1641-223KR

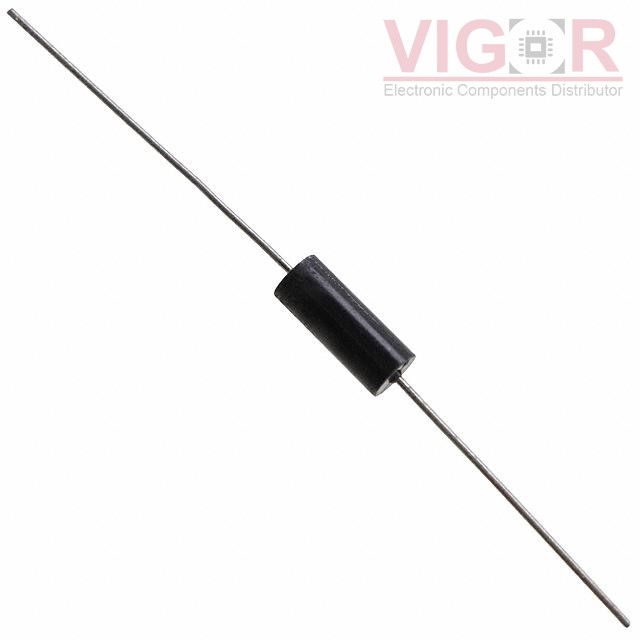

Image is for reference,
please contact us to get the real picture

Part No :

ER1641-223KR

Manufacturer
API Delevan
Description
FIXED IND 22UH 290MA 960 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
ER1641-223KR PDF
Availability
0 pieces
Unit Price
$12.91564

Current price of ER1641-223KR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ER1641-223KR Specifications
Type Description
Series:Military, MIL-PRF-39010/03, ER1641
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):290 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):960mOhm Max
Q @ Freq:45 @ 2.5MHz
Frequency - Self Resonant:41MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:2.5 MHz
Features:-
Mounting Type:Through Hole
Package / Case:Axial
Supplier Device Package:-
Size / Dimension:0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Height - Seated (Max):-
