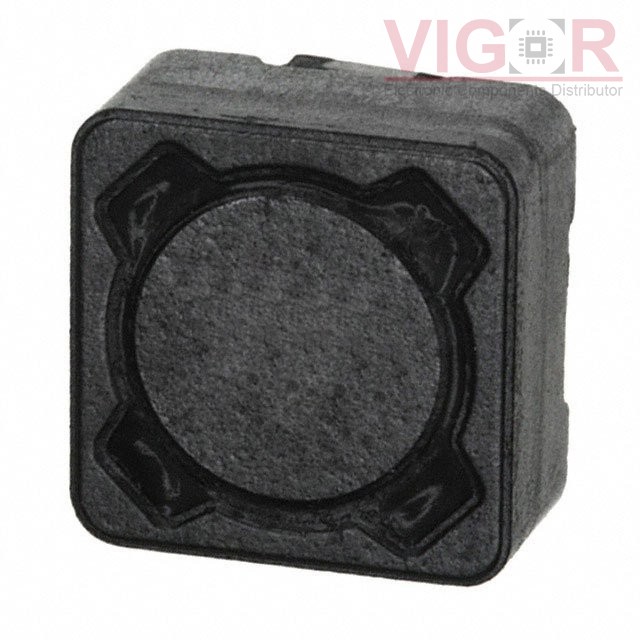

784771100

Image is for reference,
please contact us to get the real picture

Part No :: 784771100

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 10UH 5A 26.5 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 30 - Aug 03 2025

DataSheet: 784771100 PDF

Availability: 419 pieces

Unit Price: ~~$2.29000~~

Current price of 784771100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

784771100 Specifications

Type	Description
Series:	WE-PDA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Nickel Zinc Ferrite (NiZn)
Inductance:	10 µH
Tolerance:	±20%
Current Rating (Amps):	5 A
Current - Saturation (Isat):	5.25A
Shielding:	Shielded
DC Resistance (DCR):	26.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	22.3MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	1260
Size / Dimension:	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max):	0.248" (6.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

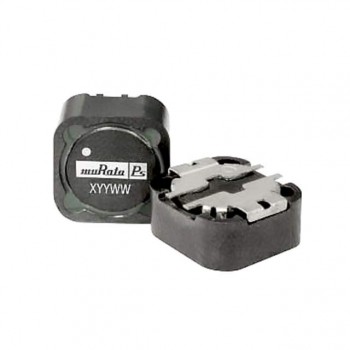

48470SC

FIXED IND 47UH 2.4A 100 MOHM

HOT

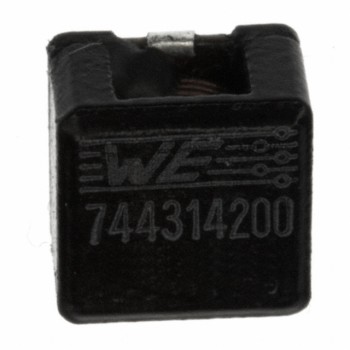

744314200

FIXED IND 2UH 11.5A 5.85 MOHM

HOT

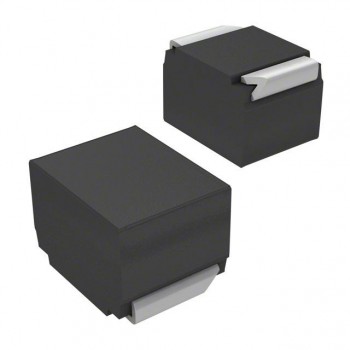

B82422T3100K000
