XPL2010-563MLC

XPL2010-563MLC

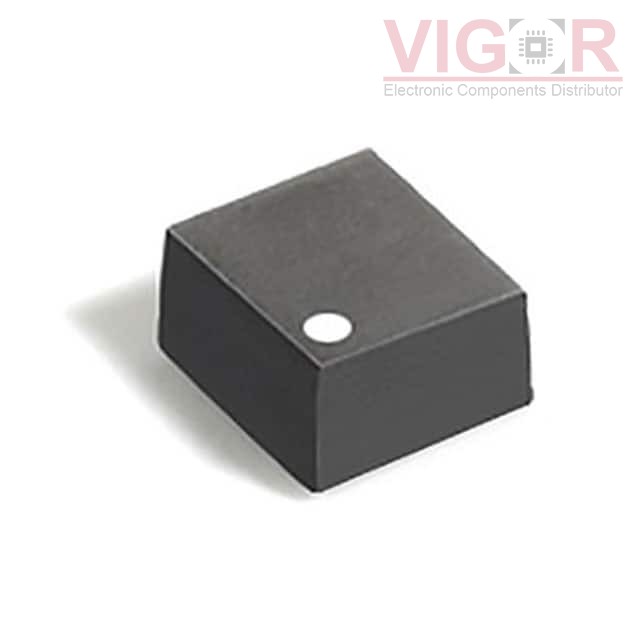

Image is for reference,
please contact us to get the real picture

Part No :

XPL2010-563MLC

Manufacturer
COILCRAFT
Description
SHIELDED POWER INDUCTORS, 56UH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
XPL2010-563MLC PDF
Availability
3282 pieces
Unit Price
$2.13000

Current price of XPL2010-563MLC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XPL2010-563MLC Specifications
Type Description
Series:XPL2010
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:-
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):240 mA
Current - Saturation (Isat):300mA
Shielding:Shielded
DC Resistance (DCR):4.82Ohm Max
Q @ Freq:-
Frequency - Self Resonant:15MHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.079" L x 0.075" W (2.00mm x 1.90mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CBC2012T100K

CBC2012T100K

FIXED IND 10UH 340MA 1.56 OHM
HOT SDR1307-101KL

SDR1307-101KL

FIXED IND 100UH 1.9A 180MOHM SMD

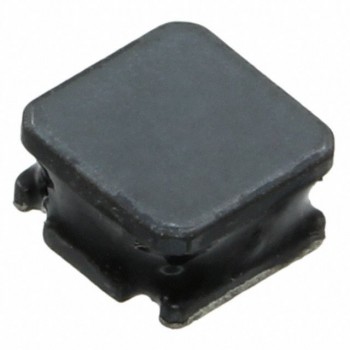

HOT 74404086471
