MHQ0603P22NHTD25

MHQ0603P22NHTD25

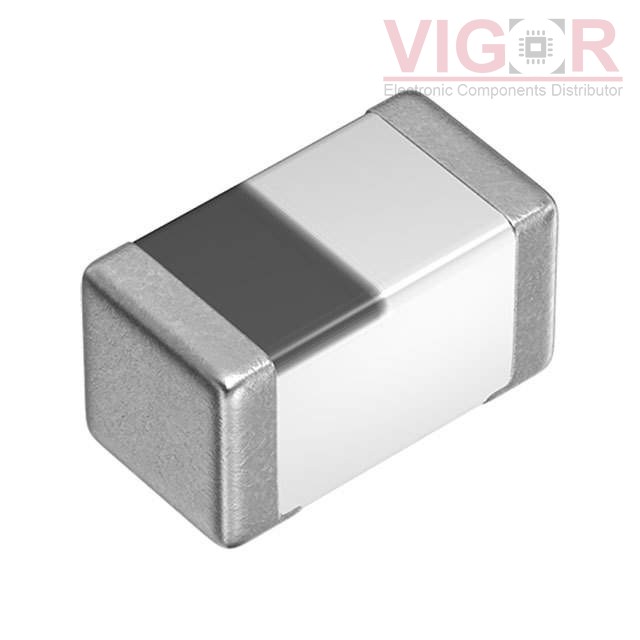

Image is for reference,
please contact us to get the real picture

Part No :

MHQ0603P22NHTD25

Manufacturer
TDK Corporation
Description
FIXED IND 22NH 160MA 2OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
MHQ0603P22NHTD25 PDF
Availability
1148 pieces
Unit Price
$0.58000

Current price of MHQ0603P22NHTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MHQ0603P22NHTD25 Specifications
Type Description
Series:MHQ-P
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Multilayer
Material - Core:Ceramic, Non-Magnetic
Inductance:22 nH
Tolerance:±3%
Current Rating (Amps):160 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2Ohm Max
Q @ Freq:16 @ 500MHz
Frequency - Self Resonant:2.2GHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:500 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:0201 (0603 Metric)
Size / Dimension:0.026" L x 0.014" W (0.65mm x 0.35mm)
Height - Seated (Max):0.016" (0.40mm)
