PA5003.561NLT

PA5003.561NLT

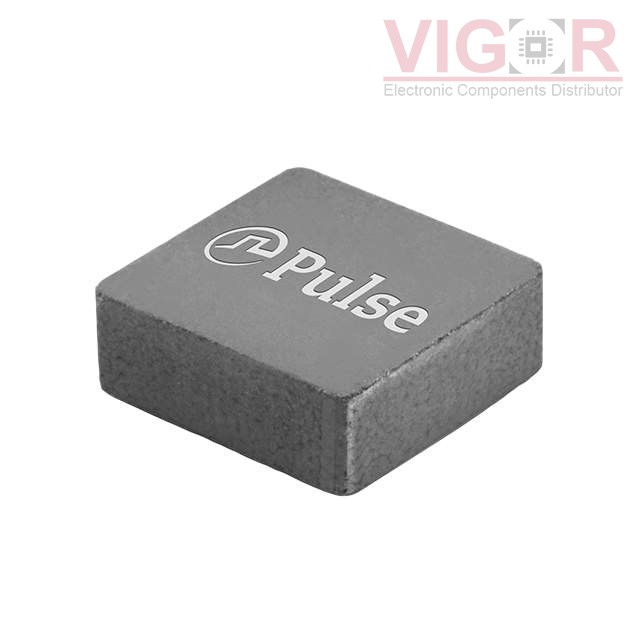

Image is for reference,
please contact us to get the real picture

Part No :

PA5003.561NLT

Manufacturer
PulseLarsen Antenna
Description
FIXED IND 560NH 17.7A 4.52 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PA5003.561NLT PDF
Availability
1956 pieces
Unit Price
$1.66000

Current price of PA5003.561NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5003.561NLT Specifications
Type Description
Series:PA5003.XXXNLT
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):17.7 A
Current - Saturation (Isat):22.2A
Shielding:Shielded
DC Resistance (DCR):4.52mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max):0.122" (3.10mm)
