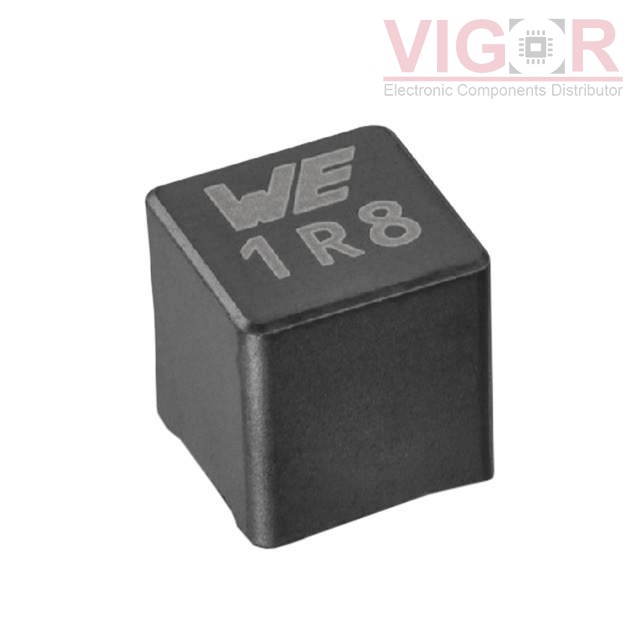

Image is for reference,
please contact us to get the real picture

Part No :

7843340220

Manufacturer
Würth Elektronik Midcom
Description
FIXED IND 2.2UH 8.4A 12MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
7843340220 PDF
Availability
315 pieces
Unit Price
$2.55000

Current price of 7843340220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7843340220 Specifications
Type Description
Series:WE-CHSA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):8.4 A
Current - Saturation (Isat):14.7A
Shielding:Shielded
DC Resistance (DCR):12mOhm Max
Q @ Freq:-
Frequency - Self Resonant:67MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:8090
Size / Dimension:0.319" L x 0.319" W (8.10mm x 8.10mm)
Height - Seated (Max):0.366" (9.30mm)
