SDR6603-820M

SDR6603-820M

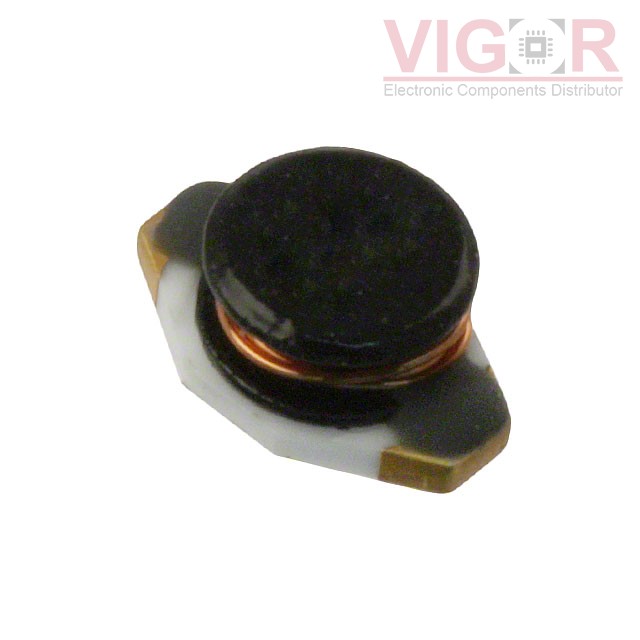

Image is for reference,
please contact us to get the real picture

Part No :

SDR6603-820M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 82UH 350MA 1.18OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SDR6603-820M PDF
Availability
0 pieces
Unit Price
$0.51480

Current price of SDR6603-820M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR6603-820M Specifications
Type Description
Series:SDR6603
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:82 µH
Tolerance:±20%
Current Rating (Amps):350 mA
Current - Saturation (Isat):350mA
Shielding:Unshielded
DC Resistance (DCR):1.18Ohm Max
Q @ Freq:10 @ 2.52MHz
Frequency - Self Resonant:10MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max):0.115" (2.92mm)
