LTF3020T-560M-D

LTF3020T-560M-D

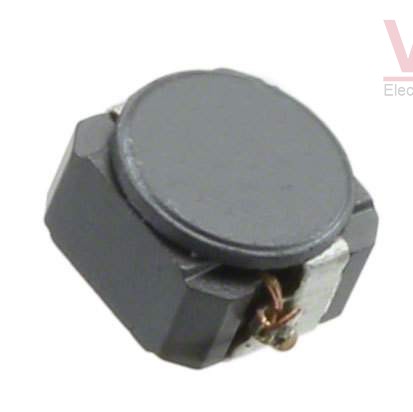

Image is for reference,
please contact us to get the real picture

Part No :

LTF3020T-560M-D

Manufacturer
TDK Corporation
Description
FIXED IND 56UH 370MA 1.21 OHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
LTF3020T-560M-D PDF
Availability
0 pieces
Unit Price
$0.64000

Current price of LTF3020T-560M-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTF3020T-560M-D Specifications
Type Description
Series:LTF3020-D
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):370 mA
Current - Saturation (Isat):250mA
Shielding:Shielded
DC Resistance (DCR):1.21Ohm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 150°C
Inductance Frequency - Test:1 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.177" L x 0.118" W (4.50mm x 3.00mm)
Height - Seated (Max):0.079" (2.00mm)
