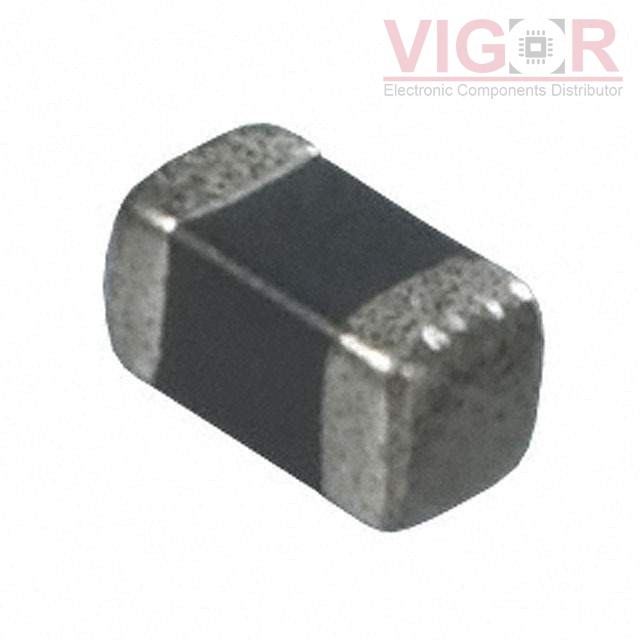

LQB18NNR56M10D

LQB18NNR56M10D

Image is for reference,
please contact us to get the real picture

Part No :

LQB18NNR56M10D

Manufacturer
TOKO / Murata
Description
FIXED IND 560NH 300MA 850 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
LQB18NNR56M10D PDF
Availability
0 pieces
Unit Price
$0.04590

Current price of LQB18NNR56M10D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQB18NNR56M10D Specifications
Type Description
Series:LQB18
Package:Tape & Reel (TR)
Part Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):300 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):850mOhm Max
Q @ Freq:25 @ 25MHz
Frequency - Self Resonant:80MHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.037" (0.95mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SH150S-0.34-39

SH150S-0.34-39

FIXED IND 39UH 340MA 800 MOHM

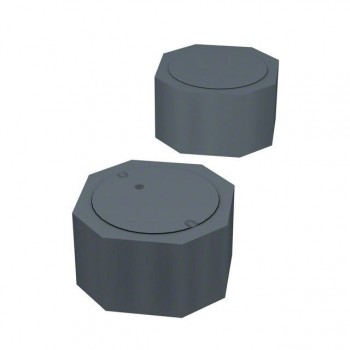

HOT SRU5028-2R2Y

SRU5028-2R2Y

FIXED IND 2.2UH 3.2A 21 MOHM SMD

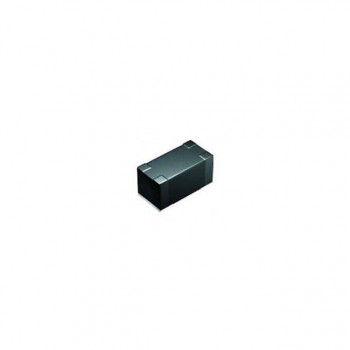

HOT BRC2518T1R0M
