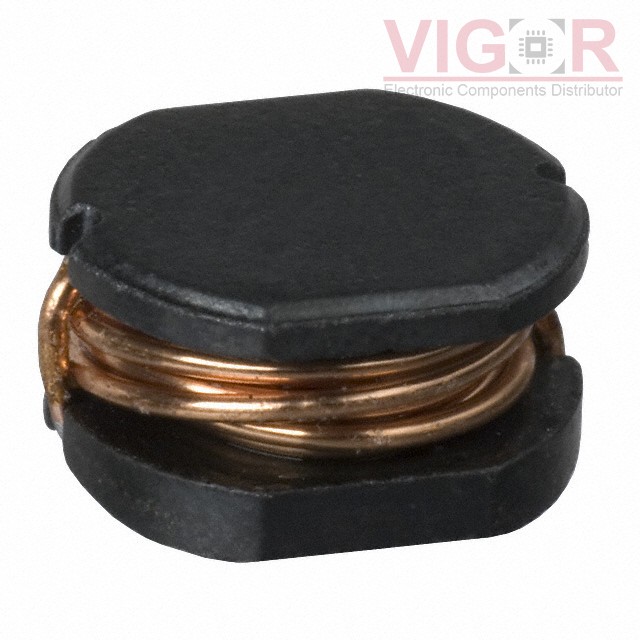

PM105-150M-RC

Image is for reference,
please contact us to get the real picture

Part No :: PM105-150M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 15UH 2.25A 80 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: PM105-150M-RC PDF

Availability: 129 pieces

Unit Price: ~~$1.33000~~

Current price of PM105-150M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM105-150M-RC Specifications

Type	Description
Series:	PM105
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±20%
Current Rating (Amps):	2.25 A
Current - Saturation (Isat):	4A
Shielding:	Unshielded
DC Resistance (DCR):	80mOhm
Q @ Freq:	30 @ 2.52MHz
Frequency - Self Resonant:	16MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.386" L x 0.386" W (9.80mm x 9.80mm)
Height - Seated (Max):	0.228" (5.80mm)
