CW105550A-5N6J

CW105550A-5N6J

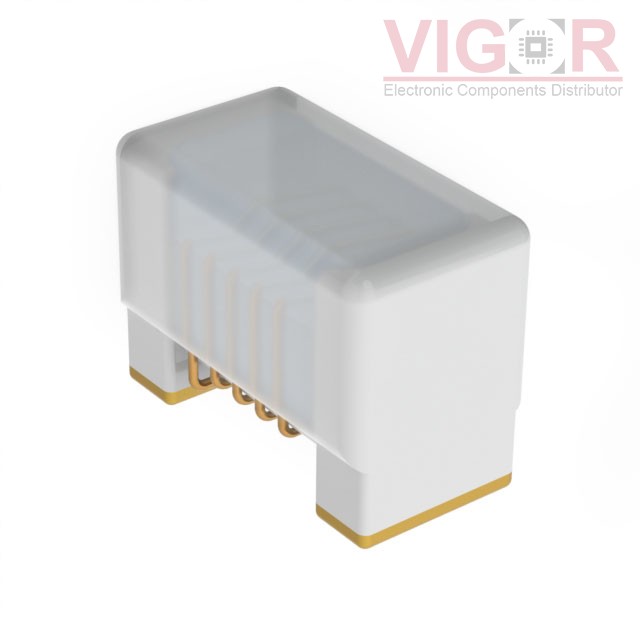

Image is for reference,
please contact us to get the real picture

Part No :

CW105550A-5N6J

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 5.6NH 760MA 83MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
CW105550A-5N6J PDF
Availability
920 pieces
Unit Price
$0.25000

Current price of CW105550A-5N6J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CW105550A-5N6J Specifications
Type Description
Series:CW105550A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ceramic
Inductance:5.6 nH
Tolerance:±5%
Current Rating (Amps):760 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):83mOhm Max
Q @ Freq:23 @ 250MHz
Frequency - Self Resonant:5.8GHz
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:250 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402
Size / Dimension:0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):0.024" (0.60mm)
