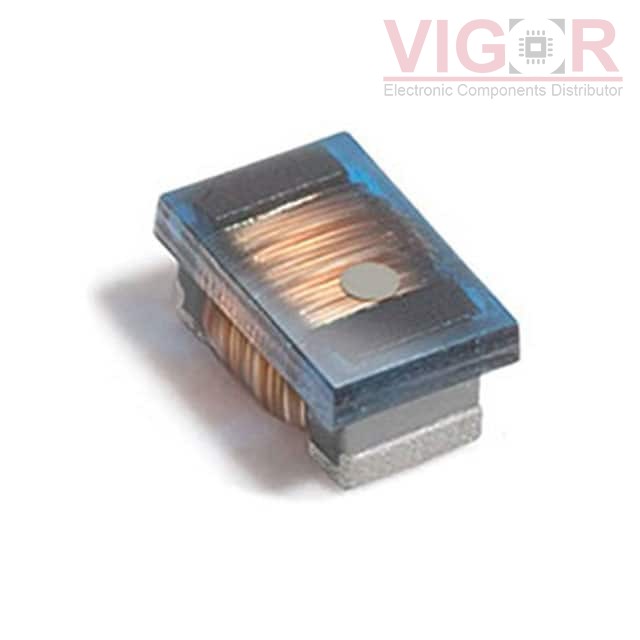

0603AF-561XJEW

Image is for reference,
please contact us to get the real picture

Part No :: 0603AF-561XJEW

Manufacturer: COILCRAFT

Description: WIREWOUND INDUCTOR [email protected]

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: 0603AF-561XJEW PDF

Availability: 1478 pieces

Unit Price: ~~$1.49000~~

Current price of 0603AF-561XJEW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603AF-561XJEW Specifications

Type	Description
Series:	0603AF
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	530 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	490mOhm Max
Q @ Freq:	16 @ 7.9MHz
Frequency - Self Resonant:	515MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	7.9 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603
Size / Dimension:	0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max):	0.036" (0.91mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

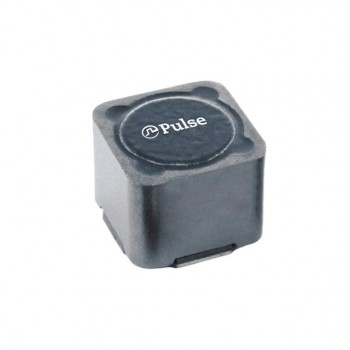

PA4320.154NLT

FIXED IND 150UH 2.3A 185 MOHM

HOT

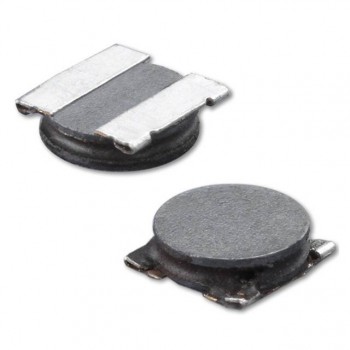

ASPI-0412FS-2R2M-T4

FIXED IND 2.2UH 1.32A 104 MOHM

HOT

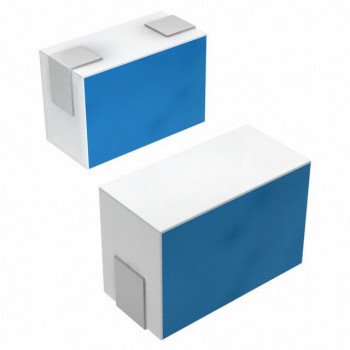

LQP03TQ1N6C02D
