LQG15HS1N0S02D

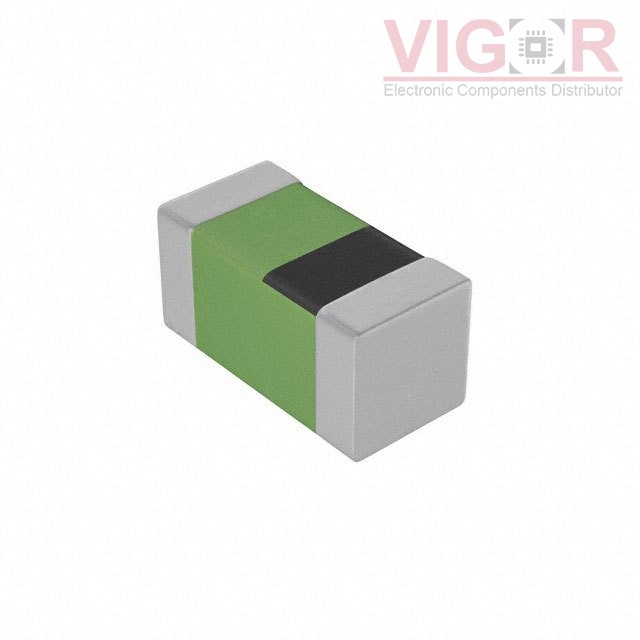

Image is for reference,
please contact us to get the real picture

Part No :: LQG15HS1N0S02D

Manufacturer: TOKO / Murata

Description: FIXED IND 1NH 1A 70 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: LQG15HS1N0S02D PDF

Availability: 2136 pieces

Unit Price: ~~$0.10000~~

Current price of LQG15HS1N0S02D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQG15HS1N0S02D Specifications

Type	Description
Series:	LQG15
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Air
Inductance:	1 nH
Tolerance:	±0.3nH
Current Rating (Amps):	1 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	70mOhm Max
Q @ Freq:	8 @ 100MHz
Frequency - Self Resonant:	10GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.022" (0.55mm)
