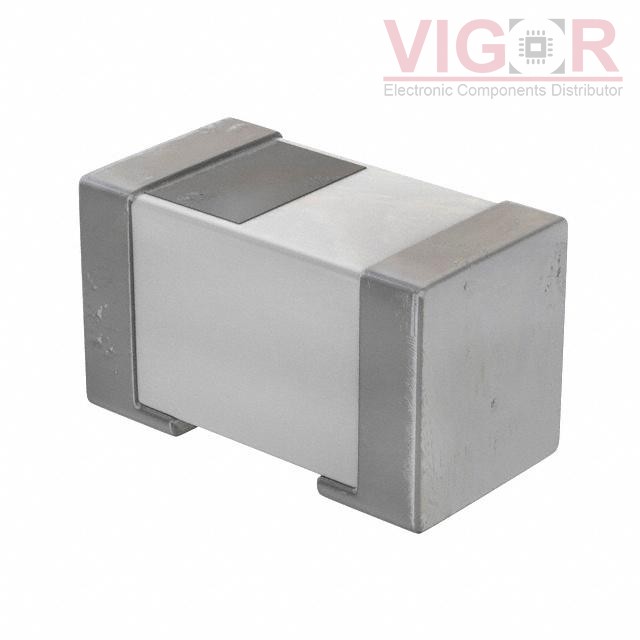

MHQ1005P47NJTD25

Image is for reference,
please contact us to get the real picture

Part No :: MHQ1005P47NJTD25

Manufacturer: TDK Corporation

Description: FIXED IND 47NH 190MA 1.6 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: MHQ1005P47NJTD25 PDF

Availability: 0 pieces

Unit Price: ~~$0.13111~~

Current price of MHQ1005P47NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MHQ1005P47NJTD25 Specifications

Type	Description
Series:	MHQ-P
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ceramic, Non-Magnetic
Inductance:	47 nH
Tolerance:	±5%
Current Rating (Amps):	190 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.6Ohm Max
Q @ Freq:	22 @ 250MHz
Frequency - Self Resonant:	1.3GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1006 Metric)
Supplier Device Package:	1006 (0402)
Size / Dimension:	0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LQW15AN3N6B8ZD

FIXED IND 3.6NH 1.95A 30 MOHM

HOT

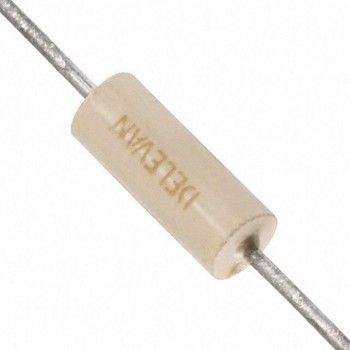

1025-30K

FIXED IND 2.7UH 355MA 550 MOHM

HOT

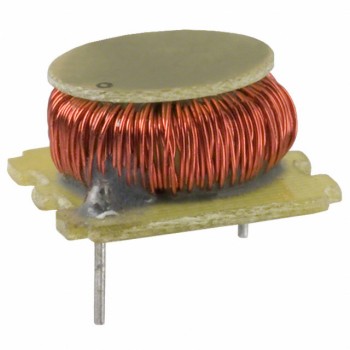

SWT-1.00-54
