SDR0604-220YL

SDR0604-220YL

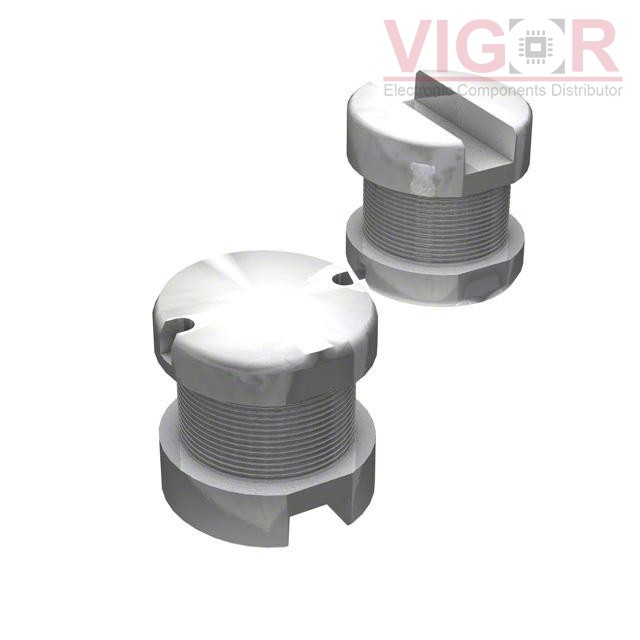

Image is for reference,
please contact us to get the real picture

Part No :

SDR0604-220YL

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 22UH 1.1A 190 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
SDR0604-220YL PDF
Availability
23723 pieces
Unit Price
$0.57000

Current price of SDR0604-220YL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SDR0604-220YL Specifications
Type Description
Series:SDR0604
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±15%
Current Rating (Amps):1.1 A
Current - Saturation (Isat):1.4A
Shielding:Unshielded
DC Resistance (DCR):190mOhm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:16MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max):0.189" (4.80mm)
