NS10165T220MNA

NS10165T220MNA

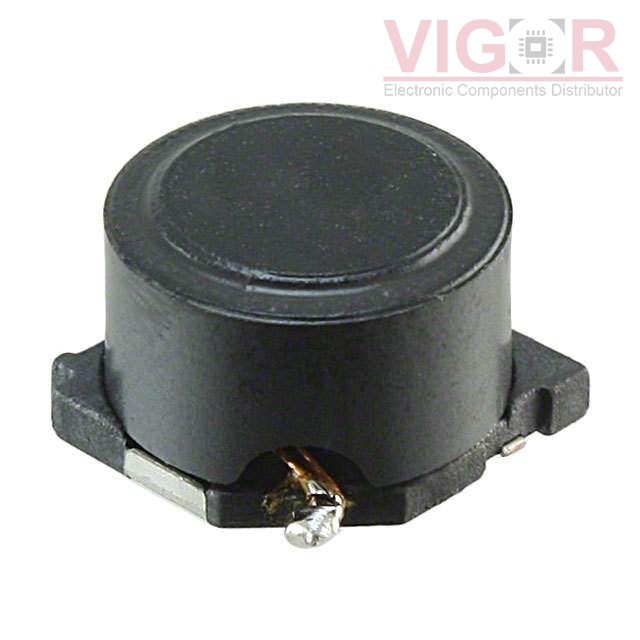

Image is for reference,
please contact us to get the real picture

Part No :

NS10165T220MNA

Manufacturer
TAIYO YUDEN
Description
FIXED IND 22UH 3.41A 37.2 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
NS10165T220MNA PDF
Availability
8539 pieces
Unit Price
$0.91000

Current price of NS10165T220MNA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS10165T220MNA Specifications
Type Description
Series:NS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.41 A
Current - Saturation (Isat):3.6A
Shielding:Shielded
DC Resistance (DCR):37.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:10.6MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max):0.270" (6.85mm)
