L0806BR15JSWST

L0806BR15JSWST

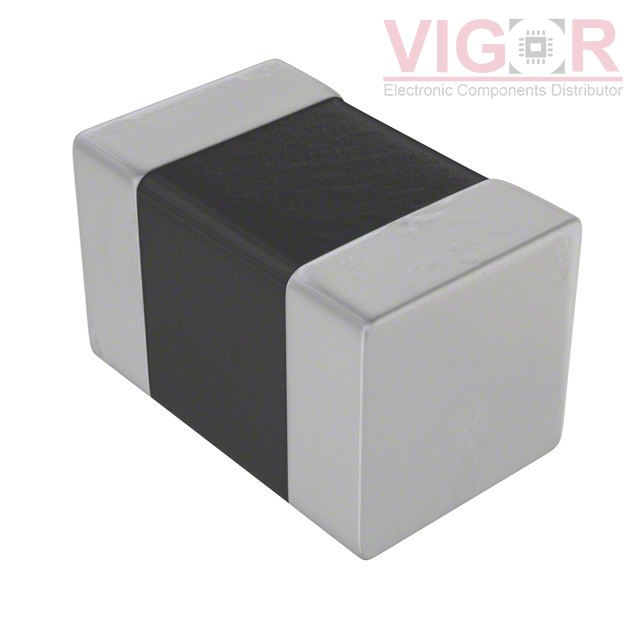

Image is for reference,
please contact us to get the real picture

Part No :

L0806BR15JSWST

Manufacturer
KEMET
Description
FIXED IND 150NH 570MA 150 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
L0806BR15JSWST PDF
Availability
1896 pieces
Unit Price
$0.29000

Current price of L0806BR15JSWST is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

L0806BR15JSWST Specifications
Type Description
Series:L-SWS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:150 nH
Tolerance:±5%
Current Rating (Amps):570 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):150mOhm
Q @ Freq:-
Frequency - Self Resonant:550MHz
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:25.2 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0806 (2016 Metric)
Supplier Device Package:0806 (2016 Metric)
Size / Dimension:0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):0.071" (1.80mm)
